Product Details

Description

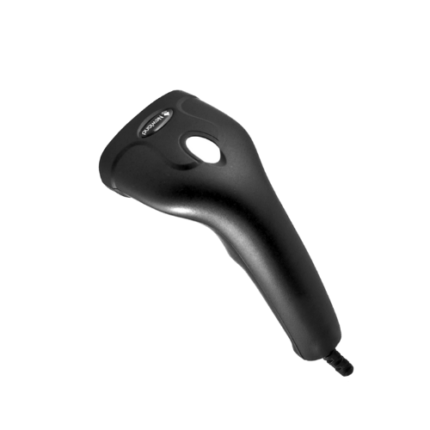

The Newland HR1250-70 is a lightweight, high-performance 1D handheld barcode scanner designed for fast-paced retail and industrial environments. With its ergonomic design, snappy 300 scans-per-second performance, and energy-efficient operation, it delivers reliable scanning at an affordable price point.
✨ Key Highlights
- Scan Engine: Linear CCD imager for accurate 1D barcode reading
- Speed & Precision: Up to 300 scans/sec with ≥4 mil resolution
- Connectivity: USB interface for plug-and-play integration
- Design: Compact (163 × 68.4 × 58.5 mm), only 130g with cable
- Durability: Withstands drops and operates in -20°C to 60°C environments
- Power Efficient: Operates on just 55 mA, making it eco-friendly
- Applications: Ideal for retail, inventory, logistics, healthcare, and manufacturing

Specifications

🧠 Performance
- Scan Engine: Linear CCD imager
- Scan Speed: Up to 300 scans per second
- Resolution: ≥ 4 mil
- Minimum Symbol Contrast: ≥ 30%
- Supported 1D Barcodes:
EAN-13/8, UPC-A/E, Code 39, Code 128, Code 93, Codabar, ITF-14, MSI-Plessey, Code 11, Interleaved 2 of 5, GS1 DataBar, and more
- 2D Support: ❌ Not supported

📏 Optical & Physical
- Depth of Field:
- EAN-13 (13 mil): 50–655 mm
- Code 39 (5 mil): 55–165 mm
- Code 128 (10 mil): 40–495 mm
- Scan Angles:
- Pitch: ±60°
- Roll: ±30°
- Skew: ±60°
- Dimensions: 163 × 68.4 × 58.5 mm
- Weight: 130 g (with cable)
- Indicators: Beep + LED
🔌 Electrical & Interface
- Interface: USB (wired)
- Input Voltage: DC 5V
- Current Consumption:
- Operating: 55 mA ±5 mA
- Standby: 21 mA ±2 mA
- Max: <120 mA
🌡️ Environmental
- Operating Temperature: -20°C to 60°C
- Storage Temperature: -40°C to 85°C
- Humidity: 5%–95% (non-condensing)
- ESD Protection: ±8 kV (contact), ±10 kV (air)
- Certifications: FCC Part 15 Class B, CE EMC Class B, RoH
