Product Details

Description

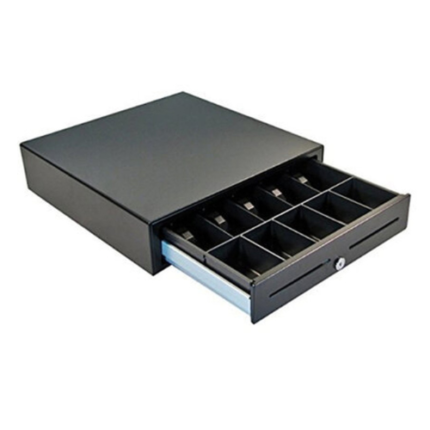

A secure, durable cash drawer designed for POS systems, offering smooth operation and organized cash handling with multiple coin and note compartments. It connects easily via RJ12 to receipt printers or terminals and includes a manual key lock for emergency access. Ideal for retail, hospitality, and service environments that require quick and safe cash transactions.

Specifications

🧰 Cash Drawer Specifications (C2120 Model)
- Opening Type: Electronic (via POS signal) + Manual key
- Direction of Travel: Front-opening slide
- Coin Compartments: 8 adjustable slots (4 variable width)
- Note Compartments: 4 or 5 adjustable slots
- Additional Storage: Hidden compartment under coin tray for checks/documents
- Locking Mechanism: Key lock with emergency release
- Interface: RJ12 (connects to POS or receipt printer)
- Voltage: 24V ±10%
- Opening Pulse: Max 1A, 80–120 ms duration
- Cable Length: 3.0 m standard (5.0 m optional)
- Dimensions:
- Width: 413 mm
- Depth: 418 mm
- Height: 100 mm
- Weight: Approx. 6.6 kg
- Color: Matte black
- Build: Steel chassis with removable insert tray
